C.A.G is one of the leading manufacturers of diesel water pumps in China. We are focused on delivering the best possible pumping solution to our customers. The diesel engine water pump series range in bore size from 1.5inch up to 6inch, is available in different flow ranges and sizes. The products include- diesel clean water pump, diesel trash pump, diesel casting pump and diesel high pressure water pumps.
At C.A.G we can handle the power needs in sectors like Building Services, Construction, Chemical, Agriculture, Fish Farming and Process Industries. We are confident that we can supply you the most economic pumping solutions to meetyour specific needs.
1.Start easily with a lightly pull
2.One year warranty
3. stable transfer Power and RPM
4 .low fuel consumption
5. OEM service available

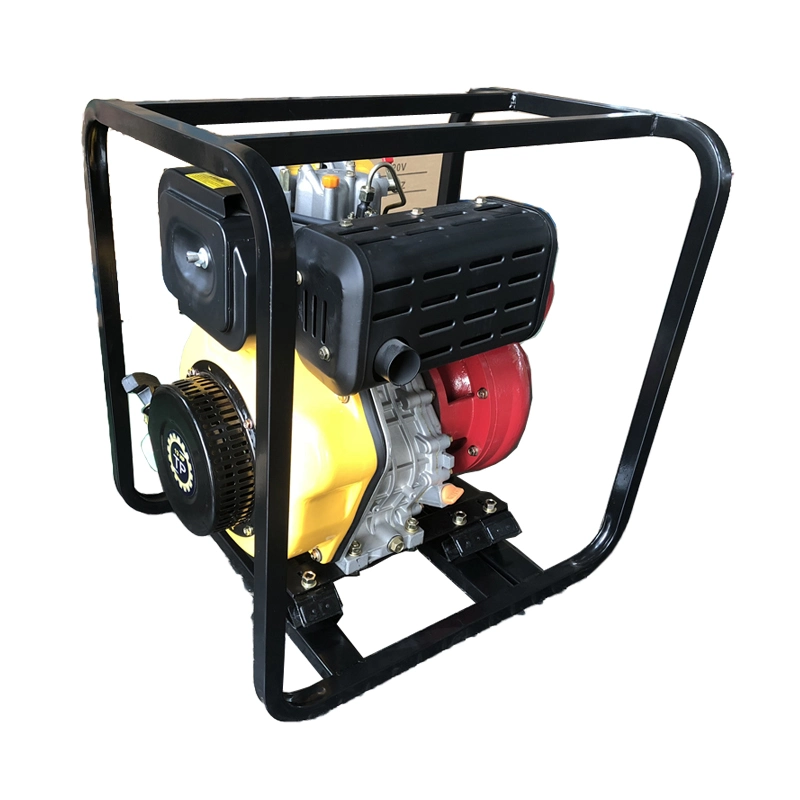

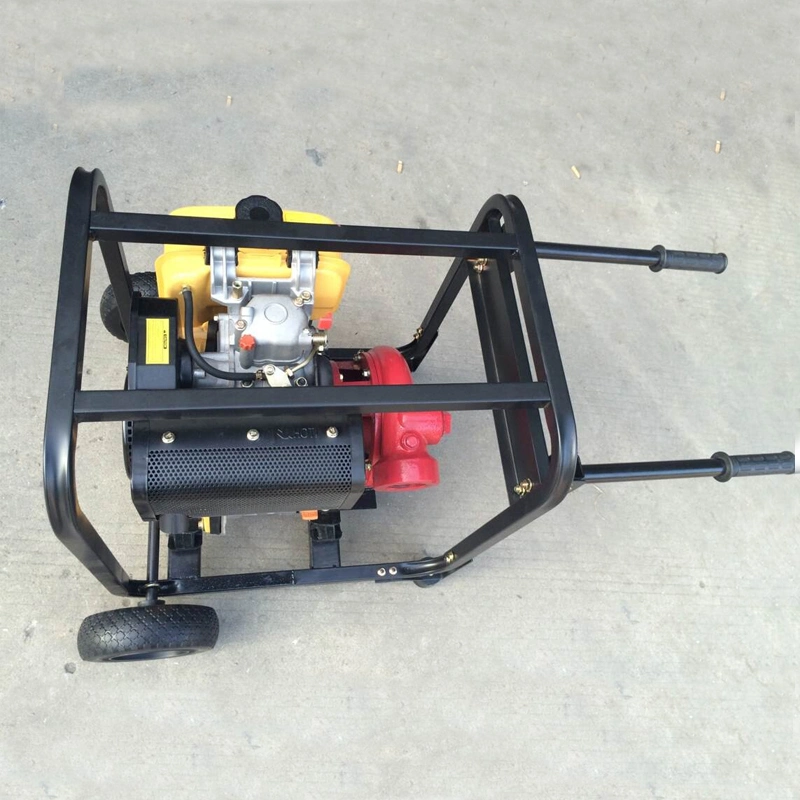

| DIESEL CAST IRON HIGH PRESSURE WATER PUMP | ||||
| Product Description | Q'ty/20FCL | Q'ty40FCL | ||
| Pump | Model | TC30CP | 132 pcs | 352 pcs |
| Suction*delivery (mm)/ (inch) | 80*80/ 3*3 | |||
| Rated Head (m) | 75 | |||
| Max. suction head (m) | 6 | |||
| Max Delivery Volume (m3/h) | 42 | |||
| Engine | Model | S186FA(E) | ||
| Engine Power | 10HP | |||
| Engine Type | Single cylinder, 4-stroke , air-cooled, vertical , diesel engine | |||
| Starting System | Manual/ Electric start | |||
| Fuel tank (L) | 5.5 | |||
| Pump Set | Continuous running time (h) | 2.5 | ||
| N.W /G.W (KG) | 68 / 70 | |||
| Packing Size L*W*H (mm) | 580*490*630 | |||
